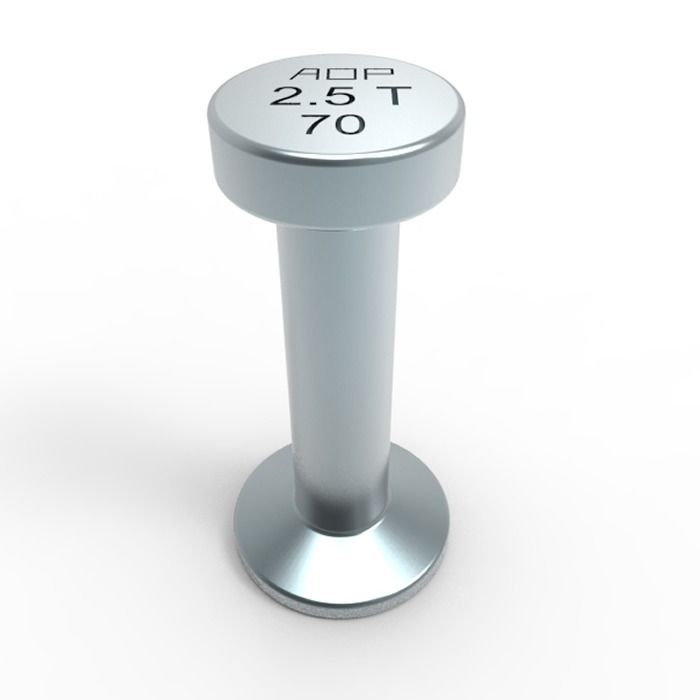

Our company has been producing premium Swift Lift Foot Anchor for over 20 years, utilizing high-strength steel from the best steel mills. Our expertise in manufacturing and quality testing ensures superior product performance.
We are a key supplier for leading embedded component design firms and distributors in Europe and the U.S., providing high-precision OEM solutions. Our strict quality control methods ensure unmatched stability and durability.
With a fourfold safety factor, our anchors offer greater efficiency and security, making them a reliable choice for various engineering and construction needs.
Customized Materials:
Q345D,20Mn2,CM690,SS316,SS304
Customized Surface Treatment:Plain (Original),Zinc Plating,H.D.G.
Spherical Head NOT Conical Head
Hot Forging for spherical head and foot
Swift Lift Foot Anchor Products Specification
| Item Code | Size | SWL (KN) | D | d | b | h | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SL01013055 | 1.3T | 13 | 18 | 10 | 25 | 55 | 0.156 |
| SL01013065 | 1.3T | 13 | 18 | 10 | 25 | 65 | 0.163 |
| SL01013085 | 1.3T | 13 | 18 | 10 | 25 | 85 | 0.175 |
| SL01013120 | 1.3T | 13 | 18 | 10 | 25 | 120 | 0.196 |
| SL01025070 | 2.5T | 25 | 25 | 14 | 35 | 70 | 0.242 |
| SL01025085 | 2.5T | 25 | 25 | 14 | 35 | 85 | 0.257 |
| SL01025120 | 2.5T | 25 | 25 | 14 | 35 | 120 | 0.294 |
| SL01025140 | 2.5T | 25 | 25 | 14 | 35 | 140 | 0.318 |
| SL01025170 | 2.5T | 25 | 25 | 14 | 35 | 170 | 0.352 |
| SL01050075 | 5.0T | 50 | 36 | 20 | 50 | 75 | 0.422 |
| SL01050095 | 5.0T | 50 | 36 | 20 | 50 | 95 | 0.486 |
| SL01050120 | 5.0T | 50 | 36 | 20 | 50 | 120 | 0.545 |
| SL01050160 | 5.0T | 50 | 36 | 20 | 50 | 160 | 0.643 |
| SL01050180 | 5.0T | 50 | 36 | 20 | 50 | 180 | 0.685 |
| SL01050210 | 5.0T | 50 | 36 | 20 | 50 | 210 | 0.758 |
| SL01050240 | 5.0T | 50 | 36 | 20 | 50 | 240 | 0.826 |
| SL01075085 | 7.5T | 75 | 46 | 24 | 60 | 85 | 0.648 |
| SL01075095 | 7.5T | 75 | 46 | 24 | 60 | 95 | 0.711 |
| SL01075120 | 7.5T | 75 | 46 | 24 | 60 | 120 | 0.800 |
| SL01075140 | 7.5T | 75 | 46 | 24 | 60 | 140 | 0.880 |
| SL01075165 | 7.5T | 75 | 46 | 24 | 60 | 165 | 0.957 |
| SL01075200 | 7.5T | 75 | 46 | 24 | 60 | 200 | 1.078 |
| SL01075300 | 7.5T | 75 | 46 | 24 | 60 | 300 | 1.454 |
| SL01100120 | 10.0T | 100 | 46 | 28 | 70 | 120 | 1.062 |
| SL01100135 | 10.0T | 100 | 46 | 28 | 70 | 135 | 1.087 |
| SL01100150 | 10.0T | 100 | 46 | 28 | 70 | 150 | 1.165 |
| SL01100170 | 10.0T | 100 | 46 | 28 | 70 | 170 | 1.308 |
| SL01100200 | 10.0T | 100 | 46 | 28 | 70 | 200 | 1.420 |
| SL01100220 | 10.0T | 100 | 46 | 28 | 70 | 220 | 1.520 |
| SL01100250 | 10.0T | 100 | 46 | 28 | 70 | 250 | 1.660 |
| SL01100340 | 10.0T | 100 | 46 | 28 | 70 | 340 | 2.080 |
| SL01150400 | 15.0T | 150 | 69 | 34 | 85 | 400 | 3.800 |
| SL01200500 | 20.0T | 200 | 69 | 39 | 99 | 500 | 5.970 |
Customized Length is Available
Contact Us to get product catalogue
