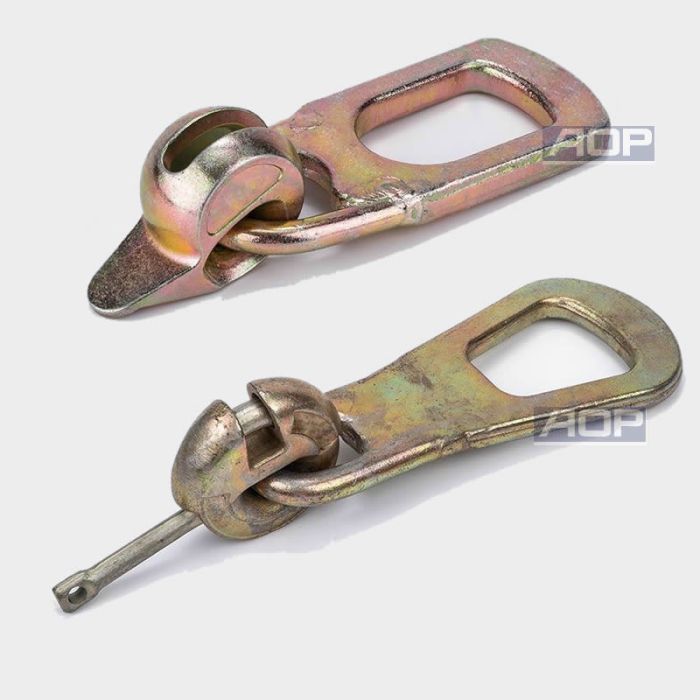

Swift lift clutches are crucial components used in the lifting and handling of precast concrete elements. These clutches are designed to securely attach to embedded lifting anchors within the concrete, allowing for safe and efficient movement of heavy concrete pieces.
Made from durable, high-strength materials, swift lift clutches are engineered to handle significant loads and ensure a reliable connection between the concrete element and lifting equipment. Their design allows for quick attachment and detachment, simplifying the lifting process and improving overall workflow.
The ease of use and robust construction of swift lift clutches make them an essential tool in construction projects. They enhance safety by preventing slippage and reducing the risk of accidents. By incorporating swift lift clutches into your operations, you can achieve more efficient handling and increased safety during the transportation and placement of precast concrete elements.
Customized Materials:
35CrMoV,42CrMo
Customized Surface Treatment:Zinc Plating,H.D.G.
Swift Lift Clutch (For Foot/Eye Anchors) Products Specification
| Item Code | Size | SWL (KN) | D | H | h | B | s | d | f | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SL05013 | 1.3T | 13 | 54 | 165 | 74 | 33 | 11.5 | 46 | 74 | 1.15 |
| SL05025 | 2.5T | 25 | 63 | 195 | 89 | 42 | 16.0 | 55 | 86 | 1.55 |
| SL05050 | 5T | 50 | 82 | 240 | 112 | 60 | 21.5 | 70 | 118 | 3.38 |
| SL05100 | 10T | 100 | 105 | 340 | 155 | 84 | 29.0 | 84 | 160 | 9.08 |
| SL05200 | 20T | 200 | 153 | 440 | 231 | 115 | 41.0 | 118 | 186 | 22.10 |
Swift Lift Clutch (For Edge Lift Anchors)Products Specification
| Item Code | Size | SWL (KN) | L | a | b | c | d | t | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| EL04025 | 2.5T | 25 | 265 | 70 | 58 | 80 | 27 | 12 | 1.91 |
| EL04050 | 5T | 50 | 330 | 86 | 65 | 105 | 36 | 16 | 3.64 |
| EL04100 | 10T | 100 | 425 | 112 | 90 | 150 | 50 | 25 | 8.12 |
| EL04260 | 26T | 260 | 605 | 160 | 120 | 206 | 72 | 30 | 30.65 |
