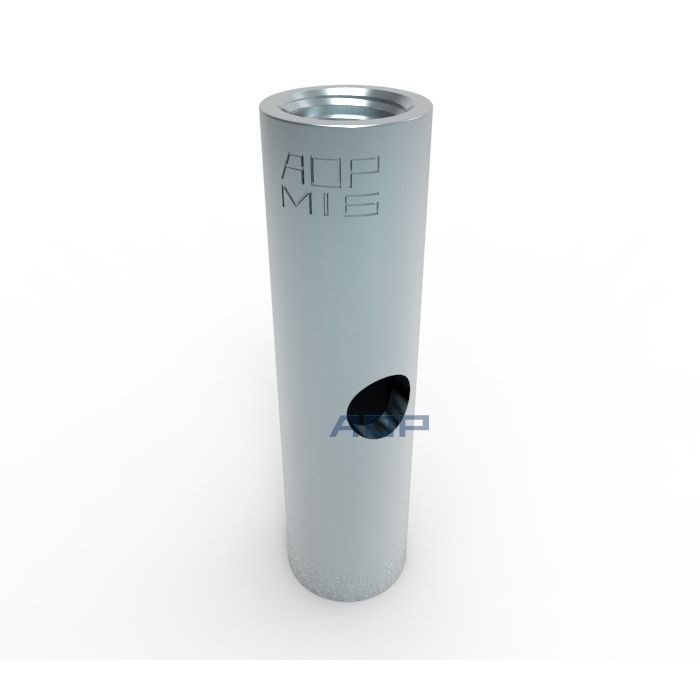

Double-ended ferrules are practical components used in precast concrete construction to provide secure and versatile anchoring points. Each ferrule features openings at both ends, allowing for easy insertion and connection of various fixtures or reinforcement bars.
Made from durable materials like high-strength steel, double-ended ferrules are designed to withstand significant loads and stresses. They are embedded into the concrete during the casting process, creating reliable attachment points for lifting equipment or structural components.
The double-ended design offers flexibility, enabling the ferrule to be used in different orientations and applications. This versatility makes it ideal for a range of construction needs, from securing lifting anchors to reinforcing concrete structures.
Using double-ended ferrules enhances the safety and efficiency of construction projects by ensuring strong, stable connections and facilitating easier handling and assembly of precast concrete elements.
Customized Materials:
Q235,45#,SS316,SS304
Customized Surface Treatment:Zinc Plating,H.D.G.
Double Ended Ferrule Products Specification
| Item Code | Size | Load (KN) | D | a | e | h | Weight (kg/piece) |
|---|---|---|---|---|---|---|---|
| PF0316140 | M16 | 18 | 28 | N12 | 40 | 140 | 0.65 |
| PF0316170 | M16 | 18 | 28 | N12 | 40 | 170 | 0.85 |
| PF0316190 | M16 | 18 | 28 | N12 | 40 | 190 | 0.90 |
| PF0320140 | M16 | 18 | 28 | N12 | 40 | 140 | 0.55 |
| PF0320165 | M20 | 24 | 28 | N12 | 40 | 165 | 0.65 |
| PF0320170 | M20 | 24 | 28 | N12 | 40 | 170 | 0.66 |
| PF0320190 | M20 | 24 | 28 | N12 | 40 | 190 | 0.78 |
Contact Us to get product catalogue
