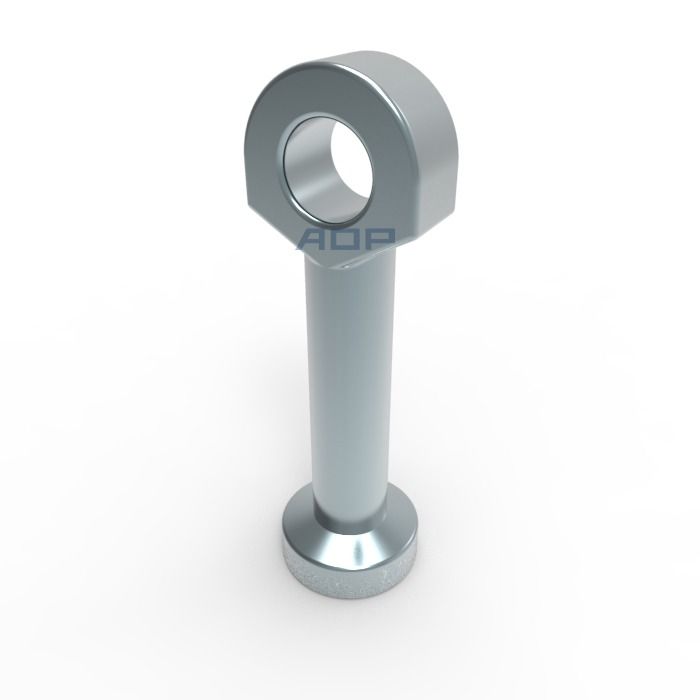

a dog bone eye anchor is a specialized component used for securing precast concrete elements. Its design resembles a dog bone with an additional eyelet or loop at one end. This anchor is embedded into pre-drilled holes in the concrete during casting. Once the concrete sets, the anchor's eyelet protrudes, providing a secure attachment point for lifting or securing the concrete element.
Dog bone eye anchors are crucial for safely handling and positioning precast concrete elements during installation. They allow for efficient lifting using hooks or cables, ensuring precise placement without compromising the structural integrity of the concrete. These anchors are widely used in various construction applications, including walls, beams, and slabs, where reliable lifting and anchoring capabilities are essential. Their robust design and ease of installation make them indispensable in modern precast concrete construction projects.
Customized Materials:
Q345D,20Mn2,CM690,SS316,SS304
Customized Surface Treatment:Plain (Original),Zinc Plating,H.D.G.
Products Specification
| Item Code | Size | SWL (lbs) | h | D | d | R | B | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| DBEA1T2916 | 1T | 2000 | 2-9/16" | 3/4" | 3/8" | 3/8" | 7/8" | 0.28 |
| DBEA2T312 | 2T | 4000 | 3-1/2" | 1-1/32" | 9/16" | 9/16" | 1-5/16" | 0.48 |
| DBEA4T434 | 4T | 8000 | 4-3/4" | 1-7/16" | 3/4" | 7/8" | 1-11/16" | 1.07 |
| DBEA8T7116 | 8T | 16000 | 7-1/16" | 1-7/8" | 1-1/8" | 1-1/8" | 2-3/8" | 2.85 |
| DBEA20T234 | 20T | 40000 | 9-7/8" | 2-3/4" | 1-9/16" | 1-9/16" | 3-5/16" | 7.11 |
