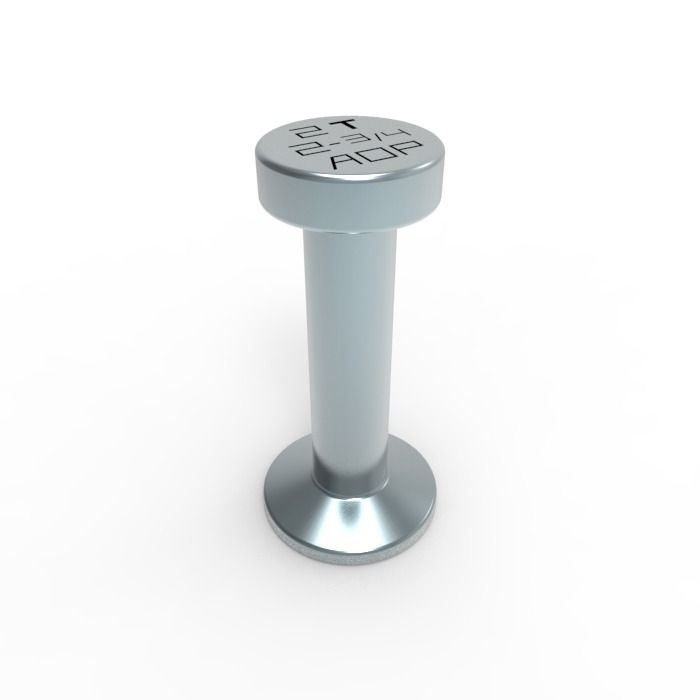

Our Dog Bone Anchors are made from high-strength steel supplied by top-tier steel mills, ensuring superior durability. With over 20 years of expertise, we have developed advanced manufacturing and testing methods to guarantee product quality.
As one of the largest manufacturers, we provide OEM services for leading precast building design companies and distributors in Europe and the U.S. Our unique approach ensures precision and stability.
With a fourfold safety factor, our products offer enhanced reliability, enabling more efficient and secure applications for customers worldwide.
Customized Materials:
Q345D,20Mn2,CM690,SS316,SS304
Customized Surface Treatment:Plain (Original),Zinc Plating,H.D.G.
Customized Length, NO Mold Fee
Spherical Head NOT Conical Head
Hot Forging for spherical head and foot
Products Specification
| Item Code | Size | SWL (lbs) | h | D | d | b | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| DB011T0238 | 1T | 2000 | 2-3/8” | 3/4” | 3/8” | 1” | 0.21 |
| DB011T0258 | 1T | 2000 | 2-5/8” | 3/4” | 3/8” | 1” | 0.24 |
| DB011T0338 | 1T | 2000 | 3-3/8” | 3/4” | 3/8” | 1” | 0.26 |
| DB011T0434 | 1T | 2000 | 4-3/4” | 3/4” | 3/8” | 1” | 0.32 |
| DB012T0234 | 2T | 4000 | 2-3/4” | 1” | 9/16” | 1-3/8” | 0.41 |
| DB012T0338 | 2T | 4000 | 3-3/8” | 1” | 9/16” | 1-3/8” | 0.45 |
| DB012T0434 | 2T | 4000 | 4-3/4” | 1” | 9/16” | 1-3/8” | 0.53 |
| DB012T0512 | 2T | 4000 | 5-1/2” | 1” | 9/16” | 1-3/8” | 0.58 |
| DB012T0634 | 2T | 4000 | 6-3/4” | 1” | 9/16” | 1-3/8” | 0.67 |
| DB012T1100 | 2T | 4000 | 11” | 1” | 9/16” | 1-3/8” | 0.95 |
| DB014T0300 | 4T | 8000 | 3” | 1-7/16” | 3/4” | 2” | 0.84 |
| DB014T0312 | 4T | 8000 | 3-1/2” | 1-7/16” | 3/4” | 2” | 0.87 |
| DB014T0334 | 4T | 8000 | 3-3/4” | 1-7/16” | 3/4” | 2” | 0.92 |
| DB014T0414 | 4T | 8000 | 4-1/4” | 1-7/16” | 3/4” | 2” | 0.99 |
| DB014T0434 | 4T | 8000 | 4-3/4” | 1-7/16” | 3/4” | 2” | 1.04 |
| DB014T0512 | 4T | 8000 | 5-1/2” | 1-7/16” | 3/4” | 2” | 1.15 |
| DB014T0718 | 4T | 8000 | 7-1/8” | 1-7/16” | 3/4” | 2” | 1.35 |
| DB014T0912 | 4T | 8000 | 9-1/2” | 1-7/16” | 3/4” | 2” | 1.70 |
| DB018T0434 | 8T | 16000 | 4-3/4” | 1-13/16” | 1-1/8” | 2-3/4” | 2.06 |
| DB018T0600 | 8T | 16000 | 6” | 1-13/16” | 1-1/8” | 2-3/4” | 2.41 |
| DB018T0634 | 8T | 16000 | 6-3/4” | 1-13/16” | 1-1/8” | 2-3/4” | 2.58 |
| DB018T0834 | 8T | 16000 | 8-3/4” | 1-13/16” | 1-1/8” | 2-3/4” | 3.16 |
| DB018T1000 | 8T | 16000 | 10” | 1-13/16” | 1-1/8” | 2-3/4” | 3.43 |
| DB018T1338 | 8T | 16000 | 13-3/8” | 1-13/16” | 1-1/8” | 2-3/4” | 4.36 |
| DB018T2634 | 8T | 16000 | 26-3/4” | 1-13/16” | 1-1/8” | 2-3/4” | 7.93 |
| DB0116T778 | 16T | 32000 | 7-7/8” | 2-3/4” | 1-9/16” | 3-7/8” | 6.69 |
| DB0120T1000 | 20T | 40000 | 10” | 2-3/4” | 1-9/16” | 3-7/8” | 7.92 |
| DB0120T1600 | 20T | 40000 | 16” | 2-3/4” | 1-9/16” | 3-7/8” | 11.10 |
| DB0120T1934 | 20T | 40000 | 19-3/4” | 2-3/4” | 1-9/16” | 3-7/8” | 13.45 |
