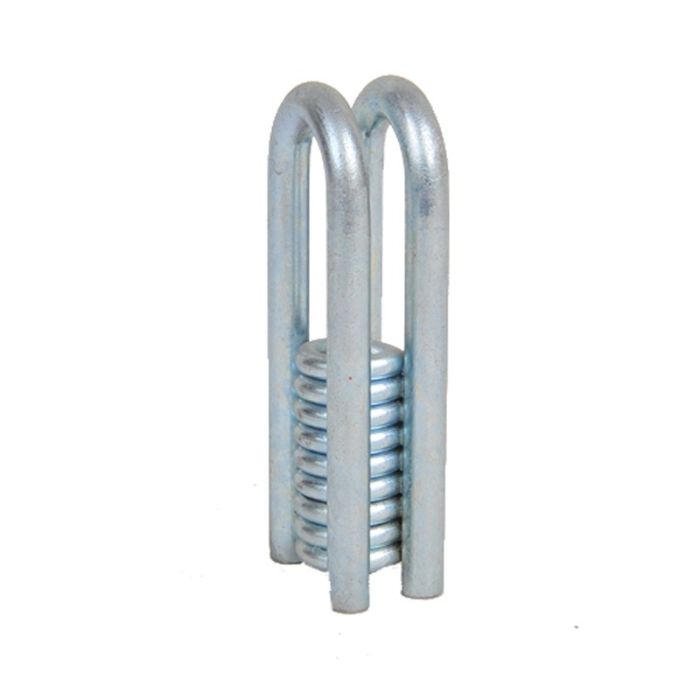

Coil loop inserts are valuable components used in precast concrete construction to provide secure lifting and anchoring points. This insert consists of a coil-shaped loop embedded into the concrete, offering a strong and reliable attachment point for lifting equipment.
Made from high-strength materials, the coil loop insert is designed to handle significant loads, making it ideal for lifting and transporting heavy concrete elements. The coil shape allows for easy integration into the concrete and ensures that the loop remains stable and firmly anchored during lifting.
Using coil loop inserts simplifies the lifting process by providing a consistent and secure connection for cranes, hoists, or lifting slings. This enhances safety and efficiency on construction sites, ensuring that concrete elements are moved and positioned accurately. Coil loop inserts are essential for reliable handling and effective management of precast concrete projects.
Customized Materials:
Q235,45#,Q345,SS316,SS304
Customized Surface Treatment:Plain (Original),Zinc Plating,H.D.G.
Loop Coil Inserts Products Specification
| Item Code | Size | SWL (lbs) | H | H1 | W | D | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| FC06124 | 1/2" | 2250 | 4" | 1-3/8" | 1-5/16" | .256" | 0.1 |
| FC06126 | 1/2" | 3600 | 6" | 1-3/8" | 1-7/16" | .327" | 0.1 |
| FC06344 | 3/4" | 3750 | 4" | 1-13/16" | 1-11/16" | .327" | 0.1 |
| FC06346 | 3/4" | 4500 | 6" | 1-13/16" | 1-7/8" | .375" | 0.1 |
| FC06446 | 1" | 4500 | 6" | 2-5/16" | 2-3/16" | .375" | 0.1 |
Flared Coil Inserts Products Specification
| Item Code | Size | SWL (lbs) | H | H1 | W | D | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| FC071212 | 1/2" | 3600 | 12" | 1-3/8" | 1-7/16" | .327" | 0.1 |
| FC073412 | 3/4" | 4500 | 12" | 1-13/16" | 1-7/8" | .375" | 0.1 |
Slab Coil Inserts Products Specification
| Item Code | Size | SWL (lbs) | H | W | D | H1 | L | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| FC08343 | 3/4" | 4500 | 3" | 7-1/8" | .327" | 1-13/16" | 3" | 0.1 |
| FC08444 | 1" | 6250 | 4" | 9-3/8" | .327" | 2-5/16" | 4" | 0.1 |
Wingnut Coil Inserts Products Specification
| Item Code | Size | SWL (lbs) | H | L | H1 | D | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| FC09121 | 1/2" | 2050 | 1-3/4" | 4-11/16" | 1-3/8" | .256" | 0.1 |
| FC09342 | 3/4" | 2550 | 2-5/16" | 5-1/4" | 1-13/16" | .327" | 0.1 |
| FC09343 | 3/4" | 4500 | 3-1/2" | 5-1/4" | 1-13/16" | .327" | 0.1 |
| FC09442 | 1" | 3550 | 2-5/16" | 5-11/16" | 2-5/16" | .327" | 0.1 |
| FC09444 | 1" | 6250 | 4-1/2" | 5-11/16" | 2-5/16" | .327" | 0.1 |
Open Coil Inserts Products Specification
| Item Code | Size | SWL (lbs) | H | H1 | H2 | W | W1 | D | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| FC10344 | 3/4" | 4500 | 4-1/2" | 1-13/16" | 1-11/16" | 2-1/8" | 1-7/8" | 0.375" | 0.1 |
| FC10442 | 1" | 6250 | 5-1/2" | 2-5/16" | 2-1/4" | 2-3/4" | 2-5/16" | 0.440" | 0.1 |
Coil Tie Inserts Products Specification
| Item Code | Size | SWL (lbs) | Struts Qty | H | H1 | D | W | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| FC112345 | 3/4" | 4250 | 2 | 5" | 1-5/8" | 0.375" | 1-5/8" | 0.42 |
| FC112346 | 3/4" | 4500 | 2 | 6" | 1-5/8" | 0.444" | 1-5/8" | 0.43 |
| FC112348 | 3/4" | 6000 | 2 | 8" | 1-5/8" | 0.444" | 1-5/8" | 0.44 |
| FC1123421 | 3/4" | 6000 | 2 | 21" | 1-5/8" | 0.375" | 1-5/8" | 0.46 |
| FC112446 | 1" | 6000 | 2 | 6" | 2-1/16" | 0.440" | 2-3/8" | 0.10 |
| FC112448 | 1-1/4" | 7500 | 2 | 8" | 2-1/16" | 0.440" | 2-1/2" | 0.10 |
| FC112346 | 3/4" | 6000 | 4 | 6" | 1-5/8" | 0.440" | 1-3/4" | 0.10 |
| FC114446 | 1" | 6000 | 4 | 6" | 2-1/16" | 0.440" | 2-3/8" | 0.10 |
| FC114448 | 1" | 9000 | 4 | 8" | 2-1/16" | 0.440" | 2-3/8" | 0.10 |
| FC1144412 | 1" | 9000 | 4 | 12" | 2-1/16" | 0.440" | 2-3/8" | 0.10 |
| FC1144415 | 1" | 9000 | 4 | 15" | 2-1/16" | 0.440" | 2-3/8" | 0.10 |
| FC1141148 | 1-1/4" | 9000 | 4 | 8" | 2-3/8" | 0.440" | 2-1/2" | 0.10 |
| FC11411412 | 1-1/4" | 13500 | 4 | 12" | 2-3/8" | 0.440" | 2-1/2" | 0.10 |
| FC11411418 | 1-1/4" | 13500 | 4 | 18" | 2-3/8" | 0.440" | 2-1/2" | 0.10 |
| FC1144412 | 1" | 9000 | 4 | 12" | 2-1/16" | 0.440" | 2-3/4" | 0.10 |
| FC1144415 | 1" | 9000 | 4 | 15" | 2-1/16" | 0.440" | 2-3/4" | 0.10 |
| FC1144418 | 1" | 9000 | 4 | 18" | 2-1/16" | 0.440" | 2-3/4" | 0.10 |
| FC11611410 | 1-1/4" | 12000 | 6 | 10" | 2-3/8" | 0.440" | 2-3/4" | 0.10 |
Contact Us to get product fully catalogue
